LBS 90 Capacitor Discharge Stud Welder (Through The Electronically Clocked Inverter Charging Board)

LBS 90 Capacitor Discharge Stud Welder (Through The Electronically Clocked Inverter Charging Board)

    • LBS 90 Capacitor Discharge Stud Welder (Through The Electronically Clocked Inverter Charging Board)
    • LBS 90 Capacitor Discharge Stud Welder (Through The Electronically Clocked Inverter Charging Board)
    • LBS 90 Capacitor Discharge Stud Welder (Through The Electronically Clocked Inverter Charging Board)
    • LBS 90 Capacitor Discharge Stud Welder (Through The Electronically Clocked Inverter Charging Board)
  • LBS 90 Capacitor Discharge Stud Welder (Through The Electronically Clocked Inverter Charging Board)

    Product Details:

    Place of Origin: Germany
    Brand Name: BTH BOLTE
    Certification: CE
    Model Number: LBS 90

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
    Delivery Time: 15 working days after received your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 30 units per month
    Contact Now
    Detailed Product Description
    Welding Range: Ø 2-10 Mm Welding Material: Steel, Stainless Steel, Aluminium, Brass
    Welding Method (acc. To DIN EN ISO 14555): Capacitor Discharge (contact And Gap Method) Welding Time: 1-3 Ms
    Capacitance: 88000 µF Charging Voltage: 60-200 V, Continuously Adjustable
    Charging Energy: 1760 Ws Dimensions (WxHxL): 275x260x470 Mm
    Weight: 19 Kg Item Number: B-90-30-3120
    High Light:

    capacitor welding machine

    ,

    stud welding unit

    LBS 90 Capacitor Discharge Stud Welder (Through The Electronically Clocked Inverter Charging Board)

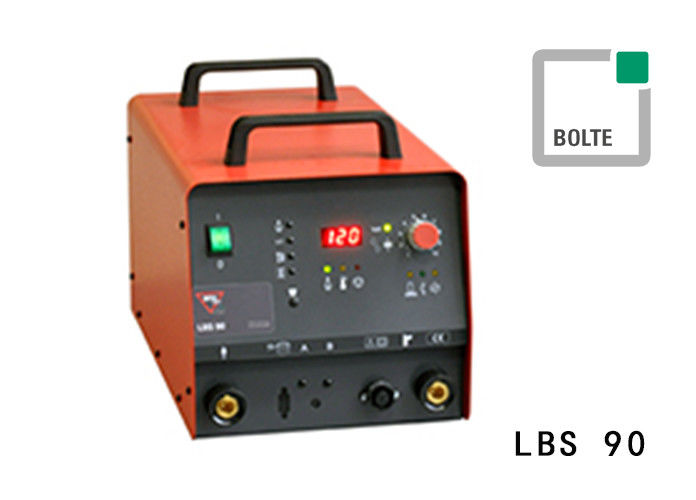

    BTH BOLTE LBS 90 capacitor discharge stud welding unit



    Compact stud welding unit



       It convinces through easy operation and high welding quality. Through the electronically clocked inverter charging board extremely short charging times and thus quick welding sequences are accomplished. The robust construction ensures high reliability and high power-on time. All functions are indicated by clearly arranged LED. The charging voltage is continuously adjustable by the rotary knob on the front.
    Optionally, the LBS 90 can be equipped with an automatic module to control the automatic stud feeder VBZ and an automatic welding gun.




    Welding range Ø 2-10 mm
    Welding material steel, stainless steel, aluminium, brass
    Welding method
    (acc. to DIN EN ISO 14555)
    capacitor discharge (contact and gap method)
    Welding time 1-3 ms
    Capacitance 88000 µF
    Charging voltage 60-200 V, continuously adjustable
    Charging energy 1760 Ws
    Power source capacitor battery
    Mains plug earth contact plug according to DIN 49441
    Mains supply 230 V (+/- 10%), 2 A, 50/60 Hz
    (convertable to 115 V (+/- 10%), 4 A, 50/60 Hz)
    Mains fuse external 10 AT
    Protection IP 21
    Dimensions (WxHxL) 275x260x470 mm
    Weight 19 kg
    Item number B-90-30-3120
    Suitable welding guns
    *only with option automatic module
    PKM-1B, PHM-1A
    PKA-500*, PHA-500*





    • easy operation
    • high welding quality
    • charging voltage continuously adjustable
    • short charging times and thus quick welding sequences through electronically clocked inverter charging board
    • low-loss charging of capacitors through electronically clocked inverter charging board
    • indication of all functions by LED
    • indication of error messages by LED
    • digital display of selected welding time
    • compact construction
    • low weight
    • optional (also retrofitable): additional charging board to shorten charging times and thus increase welding sequences
    • optional (also retrofitable): automatic module to connect the automatic stud feeder VBZ and an automatic welding gun
    • highest operational reliability and high power-on time through exclusive use of high-quality components
    • electronic control of all functions
    • repeat cycle lock to avoid welding on an already welded welding element
    • automatic function test after switch-on
    • temperature control as protection against destruction through excess temperature
    • automatic switch-off in case of excess temperature
    • protection of the unit in case of a fault on welding/control line cable and solenoid
    • charging voltage is not influenced by supply voltage variations
    • optimal safety during welding through integrated safety switching
    • internal charging time regulation in order to prevent overheating
    • low thermal power loss
    • thermic controlled ventilator
    • robust, powder-coated metal housing
    • stable fixing of welding cable sockets at own plug holder, prevents damage on housing caused by pulling of cable

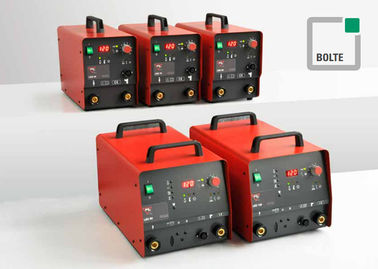

    All capacitor discharge stud welding units at a glance





      LBS
    44
    LBS
    75
    LBS
    80
    LBS
    90
    LBS
    130
    PRO-C
    750
    PRO-C
    900
    PRO-C
    1000
    PRO-C
    1500
    Welding method
    Capacitor discharge x x x x x x x x x
    Max. welding diameter (mm)
    Capacitor discharge 6 8 10 10 10 8 10 10 10
    Capacitance (µF)
    [switchable]
    44000 66000 90000 88000 132000 66000 90000 88000
    [44000]
    132000
    [88000/
    44000]
    Charging voltage (V) 60-200 60-200 60-200 60-200 60-200 60-200 60-200 60-200 60-200
    Welding time (mS) 1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3
    Welding parameter monitoring
    Welding parameter monitoring           x x x x
    Welding parameter memory
    with USB-interface for
    data transmission to a PC
              o o o o
    Electronically clocked inverter charging boards
    1 charging board x x x x x x x x x
    2 charging boards o o o o o o o o o
    Utilisable with adapter box
    PRO-SPLIT
              x x x x
    Operation
    Microprocessor control           x x x x
    Welding programme library           x x x x
    Capacitance switchable               x x
    Welding programme storage           x x x x
    Device lock with PIN code           x x x x
    Authorization concept
    (device lock, basic settings, menu structure)
              x x x x
    Weld counter (resettable)           x x x x
    Lift test           x x x x
    Repeat cycle lock x x x x x x x x x
    Electronic function control x x x x x x x x x
    Self diagnosis system x x x x x x x x x
    Automatic function test x x x x x x x x x
    Automatic stud feeding       o o     o o
    Error diagnosis systems
    Excess temperature x x x x x x x x x
    Damage on welding/control cable x x x x x x x x x
    Damage on solenoid x x x x x x x x x
    Schnittstellen
    CAN-BUS           o o o o
    USB           o o o o
    Thermic controlled ventilator     x x x   x x x
    Robust, powder-coated metal housing x x x x x x x x x
    Dimensions
    Width (mm) 195 195 195 275 275 195 195 275 275
    Height (mm) 260 260 260 260 260 260 260 260 260
    Length (mm) 400 400 400 470 470 400 400 470 470
    Weight (kg) 10 11 13,5 19 20 11 13,5 19 20
    Electric connection
    Mains supply (V) at 50/60 Hz 230
    (115)
    230
    (115)
    230
    (115)
    230
    (115)
    230
    (115)
    230
    (115)
    230
    (115)
    230
    (115)
    230
    (115)
    Mains fuse external ≥ 10 AT ≥ 10 AT ≥ 10 AT ≥ 10 AT ≥ 10 AT ≥ 10 AT ≥ 10 AT ≥ 10 AT ≥ 10 AT
    Protection IP 21 IP 21 IP 21 IP 21 IP 21 IP 21 IP 21 IP 21 IP 21
    Suitable welding guns
    PKM-1B x x x x x x x x x
    PHM-1A x x x x x x x x x
    PIM-1B x o o     o o
    PKA-500       o o     o o
    PHA-500       o o     o o
    Control cable socket for welding guns 7-pin 7-pin 7-pin 7-pin 7-pin 7-pin 7-pin 12-pin 12-pin
    x = Standard, o = Option
