Battery Powered Stud Welding Unit For Welding Cupped Head Pins And Insulation Nails

Battery Powered Stud Welding Unit For Welding Cupped Head Pins And Insulation Nails

    • Battery Powered Stud Welding Unit For Welding Cupped Head Pins And Insulation Nails
    • Battery Powered Stud Welding Unit For Welding Cupped Head Pins And Insulation Nails
  • Battery Powered Stud Welding Unit For Welding Cupped Head Pins And Insulation Nails

    Product Details:

    Place of Origin: Germany
    Brand Name: BTH BOLTE
    Certification: CE
    Model Number: ISOFIXaccu new battery powered stud welding unit

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
    Delivery Time: 15 working days after received your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 30 units per month
    Contact Now
    Detailed Product Description
    Welding Range: Ø 2-3 Mm Welding Material: Steel, Stainless Steel, Aluminium
    Welding Sequence: > 20 Welds/min Battery Capacity: Up To 1500 Welds (at 80 V Charging Voltage)
    Battery Life: Approx. 1000 Charging Cycles Battery Charging Time: 3 Hours
    Weld Counter: Resetable Error Diagnosis Systems: Excess Temperature, Damage On Welding/control Cable
    Weight: 9 Kg Dimensions (W X L X H): 195 X 302 X 270
    Item Number: B-90-30-2050 Suitable Welding Guns: PIM-1B, PKM-1B
    High Light:

    capacitor welding machine

    ,

    stud welding unit



    Battery Powered Stud Welding Unit For Welding Cupped Head Pins And Insulation Nails



    BTH BOLTE ISOFIXaccu  new battery powered stud welding unit

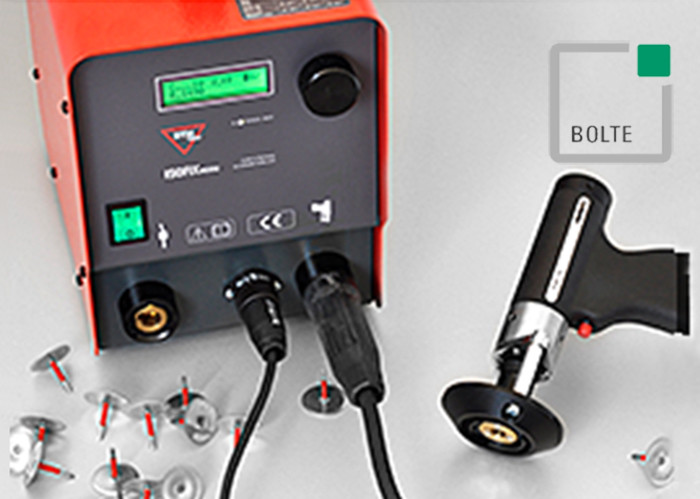

        ISOFIXaccu – new battery powered stud welding unit for welding cupped head pins and insulation nails





          The battery powered stud welding unit ISOFIXaccu is specially designed for welding cupped head pins and insulation nails. The battery operation enables mobile use without electrical power supply. The integrated battery offers a capacity of 1500 welds. With a life period of approx. 1000 charging cycles it is extremely long-lasting. Alternatively (e.g. when the battery is empty), the ISOFIXaccu can be operated at every power socket.

          With a weight of only 9 kg the ISOFIXaccu is very light and very compact (195 x 302 x 270 mm). It convinces through easy operation and high welding quality. Through the electronically clocked inverter charging board extremely short charging times and thus quick welding sequences are accomplished. The robust construction ensures high reliability and high power-on time. All functions are indicated by the high-grade LCD display. The charging voltage is continuously adjustable by the rotary knob on the front.





    All stud welding units for welding cupped head pins and insulations nails at a glance





        ISOFIX ISOFIXaccu
    Welding range 2 - 3 mm 2 - 3 mm
    Welding material steel, stainless steel, aluminium steel, stainless steel, aluminium
    Welding sequence > 30 welds/min > 20 welds/min
    Battery capacity - up to 1500 welds (at 80 V charging voltage)
    Battery life - approx. 1000 charging cycles
    Battery charging time - 3 hours
    Weld counter (resettable) - x
    Error diagnosis systems
      Excess temperature x x
      Damage on welding/control cable x x
    Weight 7 kg 9 kg
    Dimensions
      Width (mm) 195 195
      Height (mm) 270 270
      Length (mm) 302 302
    Electric connection
      Mains supply (V) at 50/60 Hz 230 (115) -
      Mains fuse external ≥ 10 AT -
      Protection IP 21 -
    External power adapter (for charging/welding from mains) - 100-240 V, 50/60 Hz, 4000 mA
    Geeignete Schweißpistolen
      PIM-1B x x
      PKM-1B x x
