Automatic Stud Welding Head KHA-200F is Designed for Capacitor Discharge (Gap and Contact Method) Short Cycle and Drawn

Automatic Stud Welding Head KHA-200F is Designed for Capacitor Discharge (Gap and Contact Method) Short Cycle and Drawn

    • Automatic Stud Welding Head KHA-200F is Designed for Capacitor Discharge (Gap and Contact Method) Short Cycle and Drawn
    • Automatic Stud Welding Head KHA-200F is Designed for Capacitor Discharge (Gap and Contact Method) Short Cycle and Drawn
    • Automatic Stud Welding Head KHA-200F is Designed for Capacitor Discharge (Gap and Contact Method) Short Cycle and Drawn
    • Automatic Stud Welding Head KHA-200F is Designed for Capacitor Discharge (Gap and Contact Method) Short Cycle and Drawn
  • Automatic Stud Welding Head KHA-200F is Designed for Capacitor Discharge (Gap and Contact Method) Short Cycle and Drawn

    Product Details:

    Place of Origin: Germany
    Brand Name: BTH
    Certification: CE
    Model Number: KHA-200F

    Payment & Shipping Terms:

    Minimum Order Quantity: one units
    Price: Negotiation
    Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
    Delivery Time: 15 working days after received your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 10 units per month
    Contact Now
    Detailed Product Description
    Welding Range: Ø 2-8 Mm (other Ø On Inquiry) Stud Length: 8-40 Mm (other Lengths On Inquiry)
    Welding Method (acc. To DIN EN ISO 14555): Capacitor Discharge (contact And Gap Method), Short Cycle, Drawn Arc Welding Material: Steel, Stainless Steel, Aluminium, Brass
    Dimensions (WxHxL): 50x385x110 Mm Item Number: B-90-20-4073
    High Light:

    stud type welding machine

    ,

    weld stud equipment

    Automatic Stud Welding Head KHA-200F is Designed for Capacitor Discharge (Gap and Contact Method) Short Cycle and Drawn



    BTH The Automatic Stud Welding Head KHA-200F is Designed for



    Capacitor Discharge (Gap and Contact Method)



    Short Cycle and Drawn Arc Stud Welding

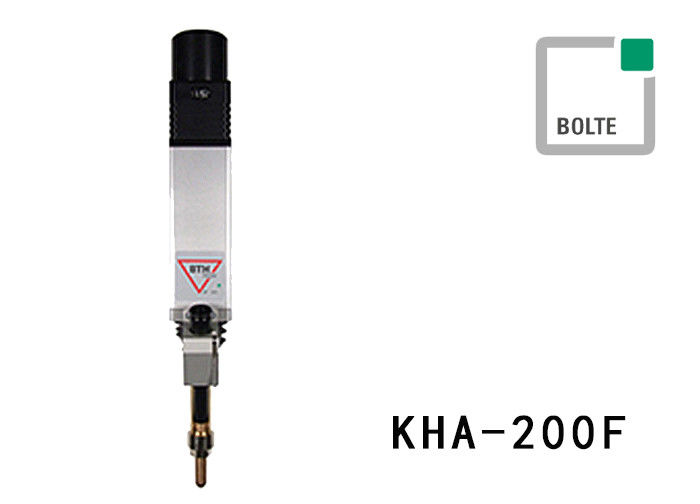

        The automatic stud welding head KHA-200F is designed for capacitor discharge (gap and contact method), short cycle and drawn arc stud welding. It can be used on CNC stud welding machines, roboters, handling systems, stationary machining centres and conventional stud welding units. The KHA-200F is suitable for automatic use (automatic stud feeding by stud feeder VBZ) and semi-automatic use (manual stud feeding).
        Optionally, the KHA-200F is available with integrated travel measuring system. Using this the lift adjustment couldn`t be easier. Moreover, it enables a quality monitoring by measuring and recording of stud travel (lift, piston runtime, immersion depth) for each weld.





    Welding range Ø 2-8 mm
    (other Ø on inquiry)
    Welding material steel, stainless steel, aluminium, brass
    Stud length 8-40 mm
    (other lengths on inquiry)
    Welding method
    (acc. to DIN EN ISO 14555)
    capacitor discharge (gap and contact method), short cycle, drawn arc
    Dimensions (WxHxL) 50x385x110 mm
    Weight (without cable) 2,2 kg
    Item number B-90-20-4073



    • lift adjustable
    • lift display
    • suitable for automatic use (automatic stud feeding into the loading tube by stud feeder VBZ) and semi-automatic use (manual stud feeding into the loading tube) [automatic transport of stud from loading tube into chuck]
    • optional: integrated travel measuring system
      - facilitates lift adjustment
      - enables a quality monitoring by measuring stud travel (lift, piston runtime, immersion depth) for each weld
    • can be used on CNC stud welding machines, roboters, handling systems, stationary machining centres and conventional stud welding units
    • especially suitable for aluminium welding
    • highest stud positioning accuracy and welding reproducibility through precision linear guide of welding piston
    • highest operational repeatability, high welding quality, high reliability
    • simple handling
    • quick and simple retooling
    • quick assembly and easy maintenance through quick-change system and pluggable connections
    • high service life through high-grade mechanical components
    • robust housing as protection against welding spatters and dirt
    • precision guidance protected from welding spatters
    • compact construction
    • low weight (can be used on light robots and weak support systems)
    • optional: adaptation to special welding elements



    All automatic welding heads at a glance



        KHA-200F KKA-200F
    Welding method
      Capacitor discharge (contact) x x
      Capacitor discharge (gap) x
      Short cycle x
      Drawn arc x
    Welding range (Ø mm)
      Capacitor discharge (contact)   2-8
      Capacitor discharge (gap) 2-8
      Short cycle 2-8
      Drawn arc 2-8
    Welding material
      Steel x x
      Stainless steel x x
      Aluminium x
      Brass x
    Stud feeding
      automatic x x
      semi-automatic (manual insertion) x x
    Spring pressure adjustable   x
    Spring pressure display   x
    Lift adjustable x
    Lift display x
    Integrated travel measuring system o
    Piston guide
      Linear guide with ball chain x x
    Robust housing x x
    Protection of piston guidance from welding spatters x x
    Dimensions
      Width (mm) 50 50
      Height (mm) 385 385
      Length (mm) 110 110
      Weight (kg) 2,2 2,2
    x = Standard, o = Option
