| Place of Origin: | Germany |
| Brand Name: | BTH Bolte |
| Certification: | CE |
| Model Number: | CNC stud welding machine 4000 x 1500 x 300 mm |
| Minimum Order Quantity: | one units |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in carton firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10 units per month |
| Working Area X/Y: | 4000 X 1500 X 300 Mm | Wwelding Rangeelstud Welding Range: | Stud Diameter 3-8 Mm, Stud Length 6-50 Mm |
|---|---|---|---|
| Max. Number Of Stud Welding Heads: | 4 | Stud Welding Units: | 30 M/min |
| Stud Welding Unit: | PRO-C 1500 | Automatic Stud Welding Heads: | KHA-200F |
| High Light: | automatic welding equipment,stud type welding machine |
||

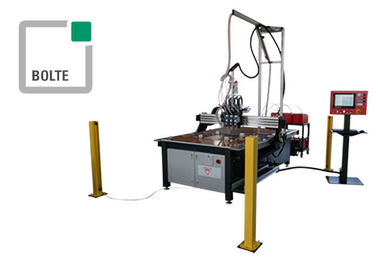

BTH CNC stud welding machine 4000 x 1500 x 300 mm
working area: 4000 x 1500 x 300 mm
welded steel machine frame
servo motor-driven Z-axis 300 mm
operating panel with touch screen PC, operation and dxf data import by software i3stud, operating and display elements of the stud welding units integrated
two automatic stud welding heads KHA-200F with integrated travel measuring system
milling unit with exhaust device
two stud welding units PRO-C 1500
two automatic stud feeders VBZ
fluid spraying devices for welding heads
eight pneumatic ground clamps, aperture angle 90°
programmable workpiece stops
lowerable ball casters
safety fence with three-sided light curtain for safeguarding the working area
Welding method: capacitor discharge stud welding
CNC stud welding machine 4000 x 1500 x 300 mm during the welding process
Detailed view: milling unit, working lift AHP-080 prepared for third automatic stud welding head, automatic stud welding heads KHA-200F and holder for changeable feeding tubes
Detailed view: programmable workpiece stops
The machine features several programmable workpiece stops. The stops can be serially pre-selected on a separate control panel. The active stop row is shown by a white control lamp. After the start of the welding program the ground clamps are activated. When the workpiece is fixed by the ground clamps, the stops are lowered into the work table and are thus protected against welding spatters.
Detailed view: lowerable ball casters
For the easy insertion of big and heavy metal sheets the machine is equipped with lowerable ball casters. The casters are extended and retracted by an electrical push switch.
Detailed view: control panels for the operation of the workpiece stops and the ball casters
