PRO-I 1300 Automatic Drawn Arc Stud Welding Machine For Short Cycle Stud Welding

PRO-I 1300 Automatic Drawn Arc Stud Welding Machine For Short Cycle Stud Welding

PRO-I 1300 Automatic Drawn Arc Stud Welding Machine For Short Cycle Stud Welding

Product Details:

Place of Origin: Germany
Brand Name: BTH BOLTE
Certification: CE
Model Number: PRO-I 1300

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 30 units per month
Contact Now
Detailed Product Description
Welding Method (acc. To DIN EN ISO 14555): Drawn Arc (ceramic Ferrule), Short Cycle, Optional: Drawn Arc (shielding Gas) Mains Supply: 320-495 V, 32 A, 50/60 Hz
Mains Fuse External: 35 AT Protection: IP 23
Dimensions (WxHxL): 290x360x650 Mm Weight: 31 Kg
Item Number: B-90-30-5030 Suitable Welding Guns: PHM-10, PHM-12, PHM-160, PHM-161, GD 16
High Light:

PRO-I 1300 Drawn Arc Stud Welder

,

Short Cycle Arc Stud Welder

,

Automatic Drawn Arc Stud Welding Machine



PRO-I 1300 Automatic Drawn Arc Stud Welding Machine For Short Cycle Stud Welding

BTH BOLTE Inverter drawn arc stud welding units PRO-I 1300



for drawn arc and short cycle stud welding



    The inverter stud welding unit PRO-I 1300 with microprocessor control convinces through excellent welding quality. Modern inverter technology ensures a very precise control and a high reproducibility of the welding process as well as a very high arc stability - also in cases of short welding times and low welding currents.


The unit offers a high welding power (max. welding diameter 13 mm). Through the innovative cooling concept a high duty-cycle and thus fast welding sequences are assured. Because of the considerably lower weight compared to conventional stud welding units it is ideally suited for mobile use. An integrated electronic wide-range power supply unit allows the operation in a supply area of 320-495 V. Therefore, the PRO-I 1300 can also be used in cases of problematic power supply (e.g. with long extension cables or generators) without difficulties. The robust construction allows the use also in harsh environments.


The PRO-I 1300 is equipped as standard with our new development PowerPackage.PowerPackage is an active and intelligent system for the connection of single welding units PRO-I to a powerful unit. It allows to build up a powerful welding unit with up to 3150 A by simply connecting two (optional: three) PRO-I units.
The PRO-I 1300 is designed for drawn arc and short cycle stud welding. Welding current and time can be adjusted continuously, of course it is equipped with a constant current regulation. The unit is easily operated by a very robust rotary knob with a built-in push button, all functions and parameters are shown on a big display.
Pre-installed welding programmes facilitate the choice of the right adjustment values for different welding tasks. Additionally, user specific welding programmes can be stored. The modular design of the unit allows the customer specific choice of the equipment features. All optional equipment features can be retrofitted.
The integrated welding parameter monitoring enables the quality control of the finished welds. By default, the parameter sets of the last ten welds are stored. The optional available welding parameter memory allows the storage of 24500 welds and has an USB-interface for data transmission to a PC.
Optionally, the unit can be equipped with a shielding gas module for welding with shielding gas for weld pool backing and with an automatic module to control the automatic stud feeder VBZ and an automatic welding gun.
For the operation of up to four stud welding guns with different adjustment values for welding current and welding time on one unit the external adapter box PRO-SPLIT is available as accessory. The adapter box PRO-SPLIT automatically detects which gun is used.





Welding range Ø 2-13 mm
Welding material steel, stainless steel, aluminium
Welding method
(acc. to DIN EN ISO 14555)
drawn arc (ceramic ferrule), short cycle, optional: drawn arc (shielding gas)
Welding current 100-1050 A, continuously adjustable
Welding time 5-1000 ms, continuously adjustable
Power source Inverter
Mains plug CEE 32 A
Mains supply 320-495 V, 32 A, 50/60 Hz
Mains fuse external 35 AT
Protection IP 23
Dimensions (WxHxL) 290x360x650 mm
Weight 31 kg
Item number B-90-30-5030
Suitable welding guns PHM-10, PHM-12, PHM-160, PHM-161, GD 16



  • excellent welding quality - modern inverter technology ensures a very precise control and a high reproducibility of the welding process
  • very high arc stability - also in cases of short welding times and low welding currents
  • powerful - high welding current of 1050 A for max. welding diameter 13 mm (threaded stud type RD M16)
  • fast welding sequences through innovative cooling concept
  • ideally suited for mobile use - considerably lower weight than conventional stud welding units
  • easy operation also in cases of problematic power supply (e.g. with long extension cables or generators) through integrated electronic wide-range power supply unit (supply area: 320-495 V)
  • robust construction for the use in harsh environments
  • low power consumption because of the high efficiency
  • welding current continuously adjustable
  • welding time continuously adjustable
  • constant current regulation
  • easy operation by a very robust rotary knob with a built-in push button
  • all functions and parameters are shown on a big display (display contrast adjustable)
  • library with pre-installed welding programmes (selectable via stud diameter and type)
  • 59 user-specific welding programmes can be stored
  • equipped as standard with PowerPackage
    PowerPackage is an active and intelligent system for the connection of two (optional: three) welding units PRO-I to a powerful unit.
    possible combinations: advantages:
    • PRO-I 1300 + PRO-I 1300: max. welding current/time: 2100 A/1500 mS => max. welding diameter 22 mm
    • PRO-I 1300 + PRO-I 1300 + PRO-I 1300: max. welding current/time: 3150 A/1500 mS => max. welding diameter 25 mm
    • weldings with high currents of up to 3150 A with only individually fused 32 A connections
    • easy transport and subsequent connection of the light PRO-I 1300 units in areas difficult to access
    • any job-related configuration at any time (also e.g. by use of rental units)
  • welding parameter monitoring and documentation
    • recording of welding current, welding time and arc voltage for each weld
    • recording of stud travel (lift, piston runtime, immersion depth) for each weld [only when a welding gun resp. an automatic welding head with travel measuring system is used]
    • comparison of the recorded parameters to the parameters of a reference weld (tolerances adjustable)
    • in case of variances to the reference weld a warning is displayed or the unit is locked for further welds until the release by the operator (functionality can be switched off)
    • storage of the last ten welding parameter sets
    • optional (also retrofitable): welding parameter memory for the storage of 24500 welding parameter sets (storage with date and time) with USB-interface for data transmission (welding parameter sets) to a PC
  • device lock (with pin code query) to avoid unwanted parameter adjustments
  • authorization concept with different roles (password protected) for device lock as well as changes of basic settings and menu structure
  • weld counter (display in main menu)
  • optional (also retrofitable): shielding gas module for welding with shielding gas for weld pool backing
  • shielding gas pre- and post-flow time continuously adjustable (with option shielding gas module)
  • optional (also retrofitable): automatic module to connect the automatic stud feeder VBZ and an automatic welding gun
  • available as accessory: adapter box PRO-SPLIT
    • enables the operation of up to four stud welding guns with different adjustment values for welding current and welding time on one unit
    • automatic detection of used gun
    • weld counter for each gun connection
    • with up to four shielding gas modules
  • functional test without welding current for lift adjustment for welding guns and heads (lift test)
  • repeat cycle lock to avoid welding on an already welded welding element
  • intelligent self-diagnosis system (display of an error code in case of an interference/failure)
  • automatic function test after switch-on
  • temperature control as protection against destruction through excess temperature
  • phase monitoring
  • automatic switch-off in case of excess temperature and phase failure
  • protection of the unit in case of a fault on welding/control line cable and solenoid
  • protection of the electronics through air filter
  • highest operational reliability and high power-on time through exclusive use of high-quality components
  • all functions and parameters are controlled by a fast and high-performance microprocessor
  • CAN-Bus and Anybus for safe communication with higher-level controllers
  • optimized for the operation on generators
  • robust, powder-coated metal housing
  • stable fixing of welding cable sockets at own plug holder, prevents damage on housing caused by pulling of cable



All inverter drawn arc stud welding units at a glance

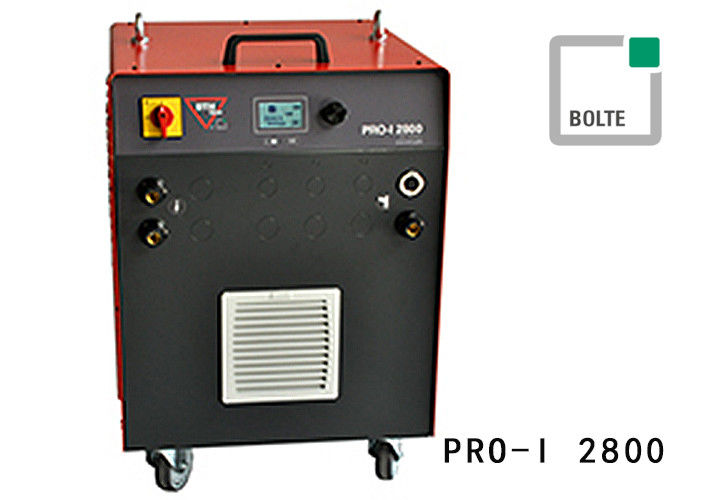

    PRO-S 600 PRO-I 1300 PRO-I 2200 PRO-I 2800
Welding method
  Drawn arc (ceramic ferrule)
[suitable for weld through deck]
x x x
[x]
x
[x]
  Short cycle x x x x
  Drawn arc (shielding gas) o o o o
Max. welding diameter (mm)
  Drawn arc (ceramic ferrule) 6 13 22 25
  Short cycle 6 10 10 10
  Drawn arc (shielding gas) 6 12 12 12
Welding current (A) 100-400 100-1050 100-2100 100-3150
Welding time (mS) 1-115 5-1000 5-1500 5-1500
Constant current regulation x x x x
Welding parameter monitoring
  Welding parameter monitoring x x x x
  Welding parameter memory
with USB-interface for
data transmission to a PC
o o o o
Gun connections
  1 gun connection x x x x
  2 gun connections   o o o
  4 gun connections   o o o
Utilisable with adapter box
PRO-SPLIT
  x x x
Operation x
  Microprocessor control x x x x
  Welding programme library x x x x
  Welding programme storage x x x x
  Device lock with PIN code x x x x
  Authorization concept
(device lock, basic settings, menu structure)
x x x x
  Weld counter (resettable) x x x x
  Lift test x x x x
  Repeat cycle lock x x x x
  Electronic function control x x x x
  Self diagnosis system x x x x
  Automatic function test x x x x
Shielding gas module o o o o
Automatic stud feeding o o o o
Error diagnosis systems
  Excess temperature x x x x
  Phase failure x x x x
  Damage on welding/control cable x x x x
  Damage on solenoid x x x x
Interfaces
  CAN-BUS o o o o
  USB o o o o
Schnittstellen
Schnittstellen
Thermic controlled ventilator x x x x
Trolley design
with two big, extremely robust castors and pull-out telescopic handle
    x x
Lifting eyes     x x
2 swivel castors, 2 fixed castors     x x
Robust, powder-coated metal housing x x x x
Dimensions
  Width (mm) 195 290 550 550
  Height (mm) 260 360 850 850
  Length (mm) 400 650 650 650
  Weight (kg) 13 31 81 102
Electric connection
  Mains supply (V) at 50/60 Hz 230 (115) 320-495 320-495 320-495
  Mains fuse external ≥ 10 AT 35 AT 63 AT 125 AT
  Mains plug CEE 7/7 32 A 63 A 125 A
  Protection IP 23 IP 23 IP 23 IP 23
Suitable welding guns
  PHM-10 x x o o
  PHM-12 x x o o
  PHM-160   o o o
  PHM-161   o o o
  GD 16   x o o
  GD 19   o x o
  GD 22   o x o
  GD 25   o o x
  PHA-500 o o o o
  PHA-500-6 o o o o
Control cable socket for welding guns 7-pin 12-pin 12-pin 12-pin
x = Standard, o = Option
