BOLTE Welding Studs for Drawn Arc Stud Welding

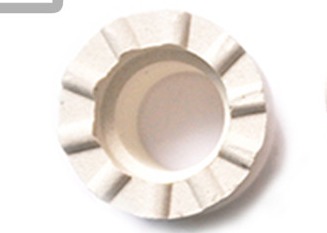

Ceramic Ferrule
Whatsapp: +86 13818731663
Wechart: 630531309
Ceramic ferrule
Ceramic ferrule for shear connectors, internally threaded studs and non-threaded studs(type UF acc. to DIN EN ISO 13918)
| Description | Dimensions | Item number | |||
| D7 -0/+0.4 |
d8 -1/+1 |
d9 -1/+1 |
h2 | ||
| UF 4 | 4.2 | 9.5 | 11.5 | ≈ 8.7 | 75-00-004 |
| UF 5 | 5.2 | 9.5 | 11.5 | ≈ 8.7 | 75-00-005 |
| UF 6 | 6.2 | 9.5 | 11.5 | ≈ 8.7 | 75-00-006 |
| UF 8 | 8.2 | 11 | 15 | ≈ 8.7 | 75-00-008 |
| UF 10 | 10.2 | 15 | 17.8 | ≈ 10 | 75-00-010 |
| UFN 10 | 10.2 | 16.5 | 20 | ≈ 9.9 | 75-00-010-N |
| UF 12 | 12.2 | 16.5 | 20 | ≈ 10.7 | 75-00-012 |
| UF 13 | 13.1 | 20 | 22.2 | ≈ 11 | 75-00-013 |
| UF 16 | 16.3 | 26 | 30 | ≈ 13 | 75-00-016 |
| UF 19 | 19.4 | 26 | 30.8 | ≈ 16.7 | 75-00-019 |
| UF 20 | 20.4 | 26.1 | 32.8 | ≈ 14.2 | 75-00-020 |
| UF 22 flat | 22.8 | 30.7 | 38.5 | ≈ 14 | 75-00-022-F |
| UF 22 flat | 22.8 | 30.7 | 38.5 | ≈ 18.5 | 75-00-022 |
| UF 25 | 26 | 35.5 | 41 | ≈ 21 | 75-00-025 |
Ceramic ferrule for threaded studs with reduced shaft (type RF acc. to DIN EN ISO13918)
| Description | Dimensions | Item number | |||
| D7 -0/+0.4 |
d8 -1/+1 |
d9 -1/+1 |
h2 | ||
| RF 5 | 5.2 | 9.5 | 11.5 | ≈ 7.9 | 71-00-005 |
| RF 6 | 6.2 | 9.5 | 12.2 | ≈ 10 | 71-00-006 |
| RF 8 | 8.2 | 12 | 15.3 | ≈ 9 | 71-00-008 |
| RF 10 | 10.2 | 15 | 18.5 | ≈ 11.5 | 71-00-010 |
| RF 12 | 12.2 | 17 | 20 | ≈ 13 | 71-00-012 |
| RF 16 | 16.3 | 20.5 | 26.5 | ≈ 15.3 | 71-00-016 |
