Bolte BTH Ferrule Grip Standard Accessories for Stud Welding Gun PHM-12, PHM-112

Bolte BTH Ferrule Grip Standard Accessories for Stud Welding Gun PHM-12, PHM-112

    • Bolte BTH Ferrule Grip Standard   Accessories for Stud Welding Gun PHM-12, PHM-112
    • Bolte BTH Ferrule Grip Standard   Accessories for Stud Welding Gun PHM-12, PHM-112
    • Bolte BTH Ferrule Grip Standard   Accessories for Stud Welding Gun PHM-12, PHM-112
    • Bolte BTH Ferrule Grip Standard   Accessories for Stud Welding Gun PHM-12, PHM-112
  • Bolte BTH Ferrule Grip Standard   Accessories for Stud Welding Gun PHM-12, PHM-112

    Product Details:

    Place of Origin: Genmany
    Brand Name: Bolte BTH
    Certification: CE
    Model Number: Ferrule grip standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiation
    Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
    Delivery Time: 15 working days after received your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 10000 PCS per month
    Contact Now
    Detailed Product Description
    Foot Piece: 22-25 Length: 22-75





    Bolte BTH Ferrule Grip Standard   Accessories for Stud Welding Gun PHM-12, PHM-112

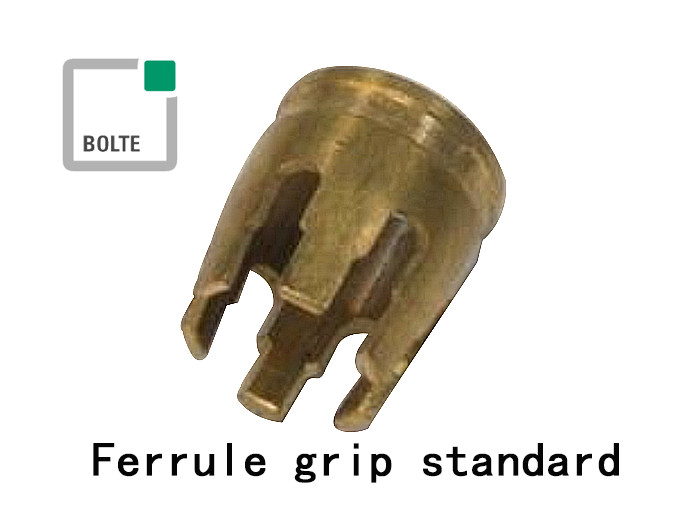

    Bolte BTH Ferrule Grip Standard



    Accessories for Stud Welding Gun PHM-12, PHM-112



       Bolte BTH Ferrule Grip Standard   Accessories for Stud Welding Gun PHM-12, PHM-112





          Description:       Field of application:
          Ferrule grip standard       Threaded studs, non-threaded studs, internally threaded studs



    Ø d2 Ø foot piece Length (mm) for ceramic ferrule Item number
    9.6 22 22 RF 5, RF 6, PF 6, UF 4, UF 5, UF 6 65-07-00
    11.3 22 22 RF 8, PF 8, UF 8 65-08-00
    12.8 22 22   65-46-00
    14.8 22 22 RF 10, KSR-F 8, KSR-F 10,KSP-F 8, PF 10, KSN-F 10, UF 10 65-09-00
    16.5 22 22 RF 12, KSP-F 10, PF 12,UFN 10, UF 12 65-10-00
    19.9 29 25 RF 16, KSP-F 12, PF 16,KSN-F 12, UF 13, KF 15x3,KF 15x5 65-11-00



    d2 entspricht d8 des Keramikrings. / Ø d2 corresponds to d8 of the ceramic ferrule.

    Bolte BTH Ferrule Grip Standard   Accessories for Stud Welding Gun PHM-12, PHM-112

          Description:       Field of application:
          Ferrule grip standard – open version       Threaded studs, non-threaded studs, internally threaded studs



    Ø d2

    Ø foot piece

    Length (mm)

    for ceramic ferrule

    Item number

    9.6 22 22 RF 5, RF 6, PF 6, UF 4, UF 5, UF 6 65-15-00
    11.3 22 22 RF 8, PF 8, UF 8 65-16-00
    12.8 22 22   65-45-00
    14.8 22 22 RF 10, KSR-F 8, KSR-F 10,KSP-F 8, PF 10, KSN-F 10, UF 10 65-17-00
    16.5 22 22 RF 12, KSP-F 10, PF 12,UFN 10, UF 12 65-18-00
    19.9 29 25 RF 16, KSP-F 12, PF 16,KSN-F 12, UF 13, KF 15x3,KF 15x5 65-19-00



    d2 entspricht d8 des Keramikrings. / Ø d2 corresponds to d8 of the ceramic ferrule.

    Bolte BTH Ferrule Grip Standard   Accessories for Stud Welding Gun PHM-12, PHM-112

          Description:       Field of application:
          Ferrule grip standard – long version       Threaded studs, non-threaded studs, internally threaded studs access.
      Enables stud welding in places that are difficult to



    Ø d2 Ø foot piece Length (mm) for ceramic ferrule Item number
    19.1 22 75 Ø d2 can be adjusted to the diameter of the ceramic ferrule. 83-22-075
    26.1 29 75 Ø d2 can be adjusted to the diameter of the ceramic ferrule 83-29-075



    d2 entspricht d8 des Keramikrings. / Ø d2 corresponds to d8 of the ceramic ferrule.

    Bolte BTH Ferrule Grip Standard   Accessories for Stud Welding Gun PHM-12, PHM-112

          Description:       Field of application:
          Ferrule grip K       Permanent ceramic ferrules



    Ø d2 Ø foot piece Length (mm) for ceramic ferrule Item number
    25 M22 22 K 5, K 6 65-31-01



    *Ø d2 entspricht d8 des Keramikrings. / Ø d2 corresponds to d8 of the ceramic ferrule.



    Bolte BTH Ferrule Grip Standard   Accessories for Stud Welding Gun PHM-12, PHM-112
