Shanghai Yichen industrial co. LTD
 |
| Place of Origin: | Genmany |
| Brand Name: | Bolte BTH |
| Certification: | CE |
| Model Number: | Chuck (material: copper) for shear connectors |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in carton firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 PCS per month |
| Stud Ø: | 6 (12,7)-25 (40,9) | Inserting Depth (mm): | Verstellbar Adjustable |
|---|---|---|---|
| Length (mm): | 71 | Method: | Insulation Pins |
| High Light: | stud welder parts,welding gun accessories |
||

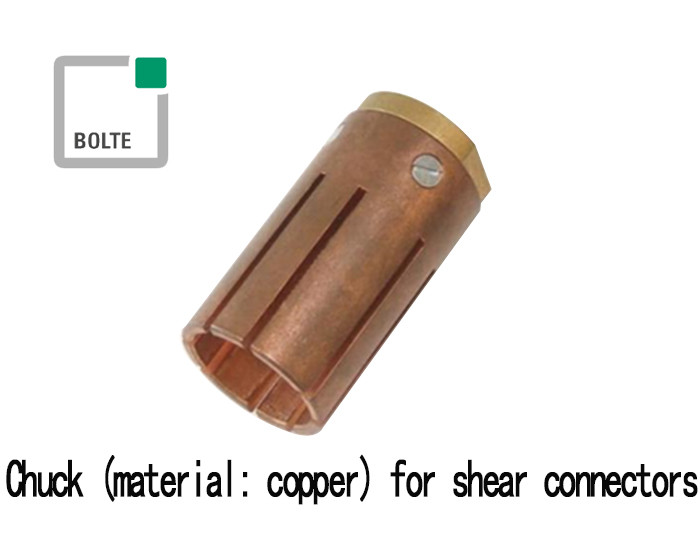

Bolte BTH Chuck (material: copper) for Shear Connectors
Accessories for Stud Welding Guns PHM-160, PHM-161, PHM-250
GD 16, GD 19, GD 22, GD
Chuck (material: copper) for shear connectors
| Description: | Field of application: | |
| Chuck (material: copper) for shear connectors | Shear connectors | |
| Stud Ø (Head Ø) | Inserting depth (mm) | Length (mm) | Item number |
| 16 (31,7) | verstellbar adjustable | 71 | 83-71-317 |
| 19 (31,7) | verstellbar adjustable | 71 | 83-71-317 |
| 22 (34,9) | verstellbar adjustable | 71 | 83-71-349 |
| 25 (40,9) | verstellbar adjustable | 71 | 83-71-409 |
There are several sizes of chucks available in the accessories for each stud welder. However, since the chuck is a consumable item during the use of the stud welder, it is recommended to purchase some chucks according to the specifications of the customer's welded studs.
