| Place of Origin: | CHINA |
| Brand Name: | BOLTE |
| Model Number: | YZX0235 |
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic+Carton |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000/day |

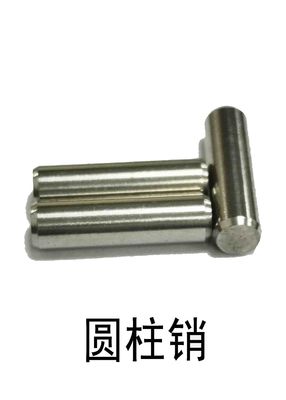

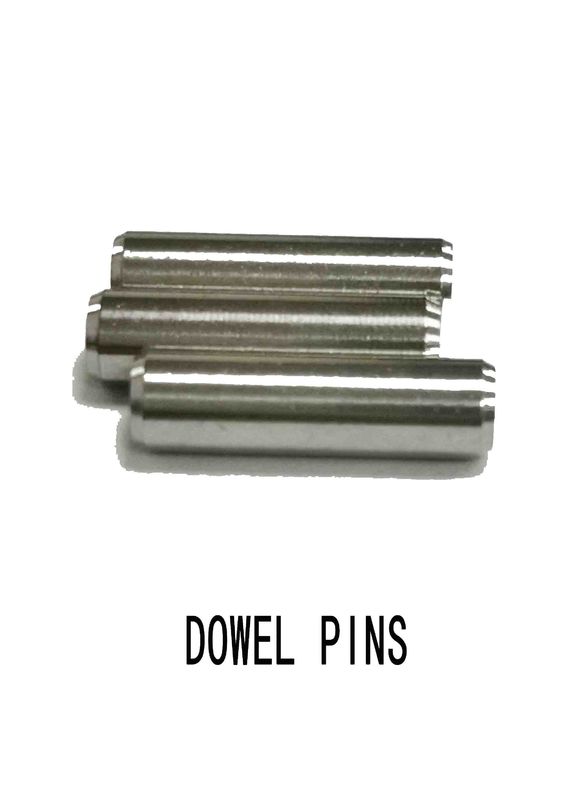

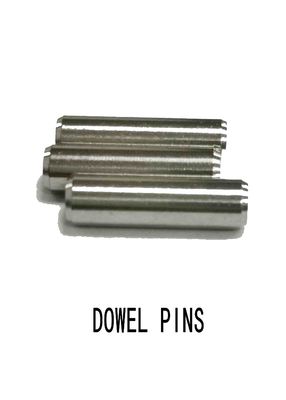

304 DOWEL PINS
Whatsapp: +86 13818731663
Wechart: 630531309
|

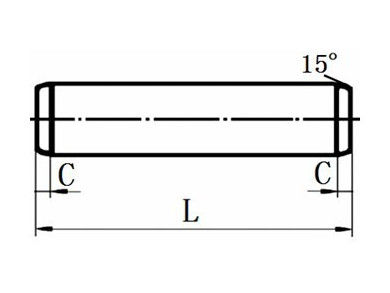

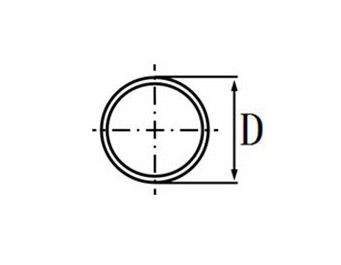

| d | r | c |
| M2 | 2 | 0.3 |
| M3 | 3 | 0.45 |
| M4 | 4 | 0.6 |
| M5 | 5 | 0.75 |
| M6 | 6 | 0.9 |
| M8 | 8 | 1.2 |
| M10 | 10 | 1.5 |
| M12 | 12 | 1.8 |
| M16 | 16 | 2.5 |
| M20 | 20 | 3 |
| Stainless steel 316 | Stainless steel 304 | |
| Product Features |
▪ The addition of Mo (2%-3%) to the steel has particularly good corrosion resistance and high temperature strength ▪ Can be used under demanding conditions ▪ Good work hardenability ▪ Non-magnetic |
▪ The austenitic basic steel grade is the most versatile ▪ Excellent corrosion and heat resistance ▪ Good low-temperature strength and mechanical properties ▪ Single-phase austenite structure, no heat treatment hardening |
| Scope of use |
Marine equipment, chemicals, fuels, paper, oxalic acid, fertilizer production equipment, photography, food industry, coastal facilities | Video industry, medical equipment, chemicals, building materials, automotive parts, ship parts |
| Stainless steel 316 chemical composition and test report | ||||||||
| Ingredients | C | Si | Mn | P | S | Ni | Cr | Mo |
| Min (%) | 10.000 | 16.500 | 2.000 | |||||
| Maximum (%) | 0.050 | 1.000 | 2.000 | 0.045 | 0.030 | 12.000 | 19.000 | 3.000 |
| Detection value (%) | 0.019 | 0.310 | 0.960 | 0.030 | 0.001 | 10.080 | 17.160 | 2.080 |
| Stainless steel 304 chemical composition and test report | |||||||
| 成分 | C | Si | Mn | P | S | Ni | Cr |
| Min (%) | 8.000 | 17.000 | |||||
| Maximum (%) | 0.050 | 1.000 | 2.000 | 0.045 | 0.030 | 10.000 | 19.000 |
| Detection value (%) | 0.011 | 0.042 | 1.760 | 0.030 | 0.001 | 8.060 | 17.230 |
