Shanghai Yichen industrial co. LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | BOLTE |
| Model Number: | YZX0238 |
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic+Carton |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000/day |
| TYPE: | YZX0238 | STANDARD: | JIS B 2808 |
|---|---|---|---|
| MATERIAL: | Spring Steel | %22PACKING INSTRUCTIONS %22: | PLASTIC + CARTON |
Whatsapp: +86 13818731663
Wechart: 630531309
| TYPE | YZX0238 |

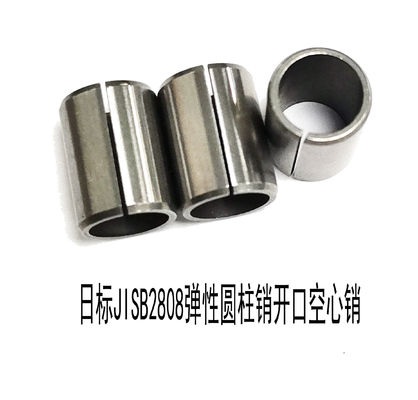

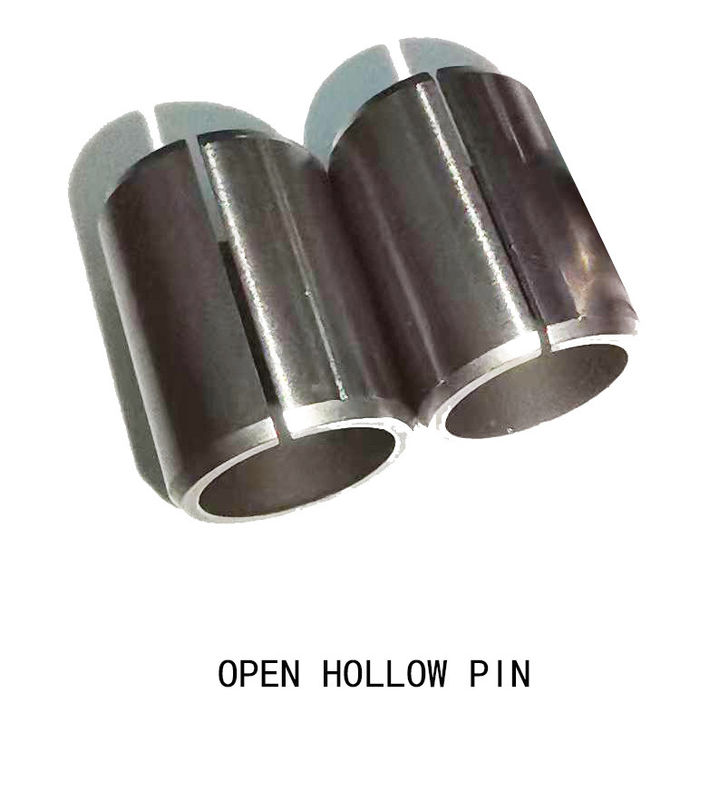

| NAME | Elastic cylindrical pin open hollow pin |
| STANDARD | JIS B 2808 |
| MATERIAL | Spring Steel |
| SURFACE TRATMENT | |
| PACKING INSTRUCTIONS | PLASTIC + CARTON |
| SIZE DESCRIPTION | D: DIAMETER L: LENGTH |

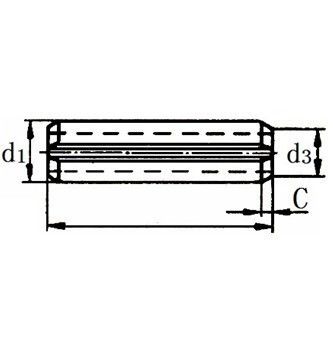

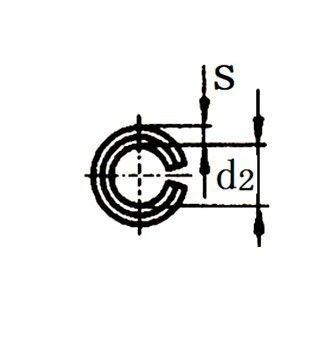

| THE TECHNICAL PARAMETERS ARE SHOWN IN THE FIGURE BELOW |
| d | s | d1 min | d2 max |
| M1 | 0.2 | 1.1 | 0.9 |
| M1.5 | 0.3 | 1.6 | 1.4 |
| M2 | 0.4 | 2.15 | 1.9 |
| M2.5 | 0.5 | 2.65 | 2.4 |
| M3 | 0.6 | 3.15 | 2.9 |
| M4 | 0.8 | 4.2 | 3.9 |
| M4.5 | 0.9 | 4.7 | 4.3 |
| M5 | 1 | 5.2 | 4.8 |
| M6 | 1.2 | 6.2 | 5.8 |
| M8 | 1.5 | 8.3 | 7.8 |
| M10 | 2 | 10.3 | 9.8 |
| M12 | 2 | 12.3 | 11.7 |
Spring steel refers to steel that is specifically used to make springs and elastic elements due to its elasticity in the quenched and tempered state. The elasticity of steel depends on its ability to elastically deform, that is, within the specified range, the ability to elastically deform makes it withstand a certain load and does not appear permanently deformed after the load is removed. Spring steel should have excellent comprehensive properties, such as mechanical properties (especially elastic limit, strength limit, yield ratio), elastic resistance (i.e., elastic resistance to shrinkage, also known as anti-relaxation properties), fatigue properties, hardenability, physical and chemical properties (heat resistance, low temperature resistance, oxidation resistance, corrosion resistance, etc.). In order to meet the above performance requirements, spring steel has excellent metallurgical quality (high purity and uniformity), good surface quality (strict control of surface defects and decarburization), precise shape and size.
| Stainless steel 316 | Stainless steel 304 | |
| Product Features |
▪ The addition of Mo (2%-3%) to the steel has particularly good corrosion resistance and high temperature strength ▪ Can be used under demanding conditions ▪ Good work hardenability ▪ Non-magnetic |
▪ The austenitic basic steel grade is the most versatile ▪ Excellent corrosion and heat resistance ▪ Good low-temperature strength and mechanical properties ▪ Single-phase austenite structure, no heat treatment hardening |
| Scope of use |
Marine equipment, chemicals, fuels, paper, oxalic acid, fertilizer production equipment, photography, food industry, coastal facilities | Video industry, medical equipment, chemicals, building materials, automotive parts, ship parts |
| Stainless steel 316 chemical composition and test report | ||||||||
| Ingredients | C | Si | Mn | P | S | Ni | Cr | Mo |
| Min (%) | 10.000 | 16.500 | 2.000 | |||||
| Maximum (%) | 0.050 | 1.000 | 2.000 | 0.045 | 0.030 | 12.000 | 19.000 | 3.000 |
| Detection value (%) | 0.019 | 0.310 | 0.960 | 0.030 | 0.001 | 10.080 | 17.160 | 2.080 |
| Stainless steel 304 chemical composition and test report | |||||||
| 成分 | C | Si | Mn | P | S | Ni | Cr |
| Min (%) | 8.000 | 17.000 | |||||
| Maximum (%) | 0.050 | 1.000 | 2.000 | 0.045 | 0.030 | 10.000 | 19.000 |
| Detection value (%) | 0.011 | 0.042 | 1.760 | 0.030 | 0.001 | 8.060 | 17.230 |
