Stainless steel cylindrical pins ⌀15 dowel pins

Stainless steel cylindrical pins ⌀15 dowel pins

    • Stainless steel cylindrical pins ⌀15 dowel pins
    • Stainless steel cylindrical pins ⌀15 dowel pins
    • Stainless steel cylindrical pins ⌀15 dowel pins
    • Stainless steel cylindrical pins ⌀15 dowel pins
  • Stainless steel cylindrical pins ⌀15 dowel pins

    Product Details:

    Place of Origin: CHINA
    Brand Name: BOLTE
    Model Number: YZX0243

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: Negotiate
    Packaging Details: Plastic+Carton
    Delivery Time: 7 work days
    Payment Terms: T/T
    Supply Ability: 100000/day
    Contact Now
    Detailed Product Description
    TYPE: YZX0243 STANDARD: DIN6325
    MATERIAL: Bearing Steel RHC58-62 SURFACE TRATMENT: Quenching, Grinding

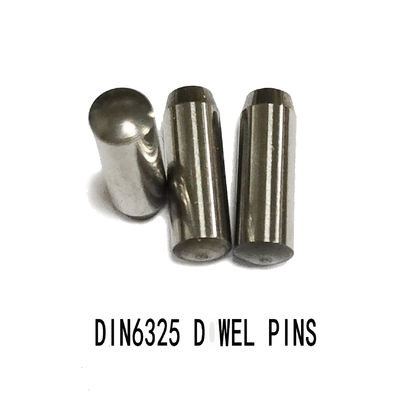

    Stainless steel cylindrical pins ⌀15 dowel pins YZX0243

    Whatsapp: +86 13818731663
    Wechart: 630531309





    TYPE YZX0243

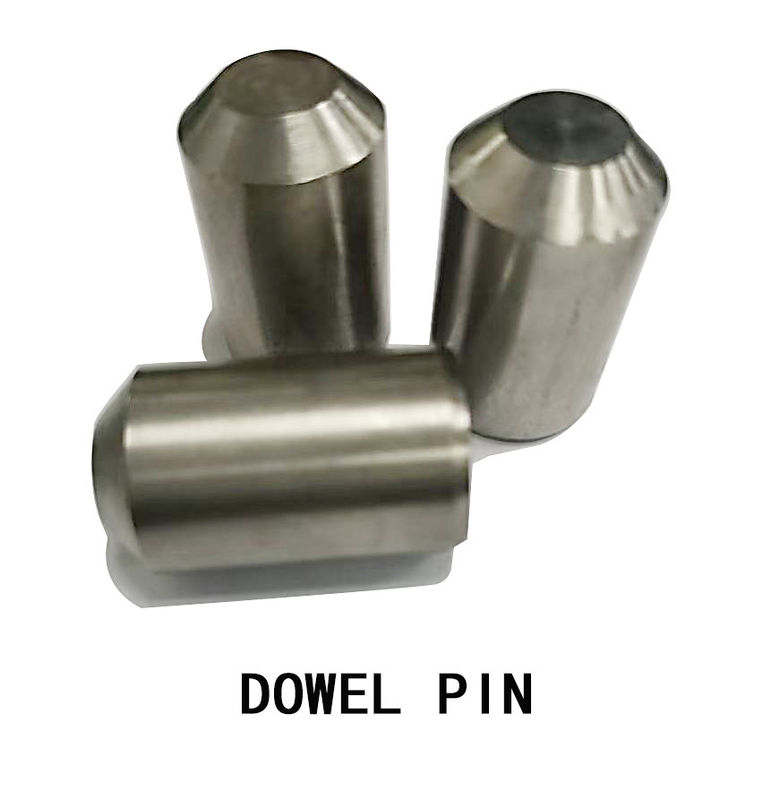

    NAME DOWEL PIN
    STANDARD DIN6325
    MATERIAL Bearing steel RHC58-62
    SURFACE TRATMENT Quenching, Grinding
    PACKING INSTRUCTIONS PLASTIC + CARTON

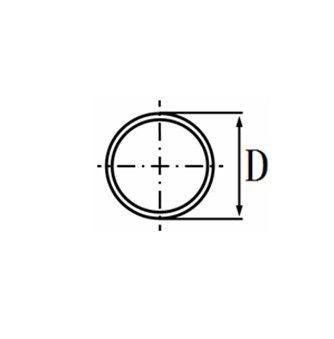

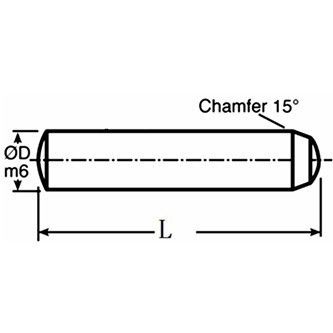

    SIZE DESCRIPTION D: DIAMETER L: LENGTH m6: OUTER DIAMETER
      THE TECHNICAL PARAMETERS ARE SHOWN IN THE FIGURE BELOW





    Stainless steel cylindrical pins ⌀15 dowel pins





    d a approx. z approx.
    M0.8 0.46 0.12
    M1 0.48 0.15
    M1.5 0.62 0.23
    M2 0.78 0.3
    M2.5 0.95 0.4
    M3 1.1 0.45
    M4 1.4 0.6
    M5 1.7 0.75
    M6 2.1 0.9
    M8 2.6 1.2
    M10 3 1.5
    M12 3.8 1.8
    M14 3.8 2
    M16 4.7 2.5
    M20 6 3





    Stainless steel cylindrical pins ⌀15 dowel pins





    HRC58-62 stands for a high hardness material, which is not a specific material name, but refers to the Rockwell hardness range that the material achieves after heat treatment. In the given search results, several different materials are mentioned to achieve such hardness, such as:

    Wear-resistant steel plate: The wear-resistant layer thickness of this material is 3-12mm, and the hardness can reach HRC58-62. It has high wear resistance, which is more than 15-20 times that of ordinary steel plates, more than 5-10 times the performance of low-alloy steel plates, and more than 2-5 times the wear resistance of high-chromium cast iron1.

    60CrMo: This is a kind of steel for rolls, which can be treated by surface induction hardening to achieve a hardness of HRC58-622.

    42CrMo: This material can also be made with proper heat treatment to achieve hardness of HRC58-622.

    12CrNi3: This is a kind of carburized steel, which can be treated by carburizing and quenching to make the surface hardness reach HRC58-622.

    GCr15: This is a type of bearing steel that can be made to HRC58-622 hardness with proper heat treatment.

    20CrMnTi: The gears of this material are quenched as a whole HRC58-62 and then carburized on the surface, which can improve the surface hardness and wear resistance8.

    It should be noted that the hardness range expressed by HRC58-62 is obtained by the heat treatment process, not the hardness of the material itself. Different materials can obtain the same hardness value through different heat treatment processes. Therefore, HRC58-62 is not a material, but a hardness index.





      Stainless steel 316 Stainless steel 304
    Product Features


    ▪ The addition of Mo (2%-3%) to the steel has particularly good corrosion resistance and high temperature strength
    ▪ Can be used under demanding conditions
    ▪ Good work hardenability
    ▪ Non-magnetic
    ▪ The austenitic basic steel grade is the most versatile
    ▪ Excellent corrosion and heat resistance
    ▪ Good low-temperature strength and mechanical properties
    ▪ Single-phase austenite structure, no heat treatment hardening
    Scope of use

    Marine equipment, chemicals, fuels, paper, oxalic acid, fertilizer production equipment, photography, food industry, coastal facilities Video industry, medical equipment, chemicals, building materials, automotive parts, ship parts





    Stainless steel 316 chemical composition and test report
    Ingredients C Si Mn P S Ni Cr Mo
    Min (%)           10.000 16.500 2.000
    Maximum (%) 0.050 1.000 2.000 0.045 0.030 12.000 19.000 3.000
    Detection value (%) 0.019 0.310 0.960 0.030 0.001 10.080 17.160 2.080





    Stainless steel 304 chemical composition and test report
    成分 C Si Mn P S Ni Cr
    Min (%)           8.000 17.000
    Maximum (%) 0.050 1.000 2.000 0.045 0.030 10.000 19.000
    Detection value (%) 0.011 0.042 1.760 0.030 0.001 8.060 17.230
