Positioning pins for the cylinder head of the box

Positioning pins for the cylinder head of the box

    • Positioning pins for the cylinder head of the box
    • Positioning pins for the cylinder head of the box
    • Positioning pins for the cylinder head of the box
  • Positioning pins for the cylinder head of the box

    Product Details:

    Place of Origin: CHINA
    Brand Name: BOLTE
    Model Number: YZX0244

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: Negotiate
    Packaging Details: Plastic+Carton
    Delivery Time: 7 work days
    Payment Terms: T/T
    Supply Ability: 100000/day
    Contact Now
    Detailed Product Description
    TYPE: YZX0244 STANDARD: JIS G3507
    MATERIAL: Cold Heading Steel %22PACKING INSTRUCTIONS %22: PLASTIC + CARTON



    Positioning pins for the cylinder head of the box  YZX0244

    Whatsapp: +86 13818731663
    Wechart: 630531309





    TYPE YZX0244
    NAME Positioning pins for the cylinder head of the box
    STANDARD JIS G3507
    MATERIAL Cold heading steel
    SURFACE TRATMENT
    PACKING INSTRUCTIONS PLASTIC + CARTON
    SIZE DESCRIPTION D: DIAMETER L: LENGTH
      THE TECHNICAL PARAMETERS ARE SHOWN IN THE FIGURE BELOW









    Positioning pins for the cylinder head of the box

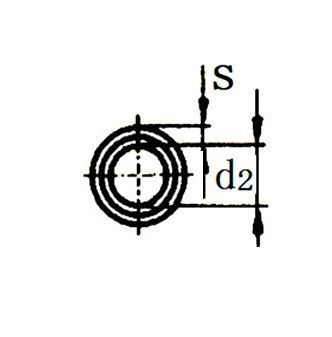

    d s d1 min d2 max
    M1 0.2 1.1 0.9
    M1.5 0.3 1.6 1.4
    M2 0.4 2.15 1.9
    M2.5 0.5 2.65 2.4
    M3 0.6 3.15 2.9
    M4 0.8 4.2 3.9
    M4.5 0.9 4.7 4.3
    M5 1 5.2 4.8
    M6 1.2 6.2 5.8
    M8 1.5 8.3 7.8
    M10 2 10.3 9.8
    M12 2 12.3 11.7



             Cold heading steel



             It is suitable for the production of structural steel with various standard parts such as rivets, bolts, pins and nuts by cold heading.









      Stainless steel 316 Stainless steel 304
    Product Features


    ▪ The addition of Mo (2%-3%) to the steel has particularly good corrosion resistance and high temperature strength
    ▪ Can be used under demanding conditions
    ▪ Good work hardenability
    ▪ Non-magnetic
    ▪ The austenitic basic steel grade is the most versatile
    ▪ Excellent corrosion and heat resistance
    ▪ Good low-temperature strength and mechanical properties
    ▪ Single-phase austenite structure, no heat treatment hardening
    Scope of use

    Marine equipment, chemicals, fuels, paper, oxalic acid, fertilizer production equipment, photography, food industry, coastal facilities Video industry, medical equipment, chemicals, building materials, automotive parts, ship parts





    Stainless steel 316 chemical composition and test report
    Ingredients C Si Mn P S Ni Cr Mo
    Min (%)           10.000 16.500 2.000
    Maximum (%) 0.050 1.000 2.000 0.045 0.030 12.000 19.000 3.000
    Detection value (%) 0.019 0.310 0.960 0.030 0.001 10.080 17.160 2.080





    Stainless steel 304 chemical composition and test report
    成分 C Si Mn P S Ni Cr
    Min (%)           8.000 17.000
    Maximum (%) 0.050 1.000 2.000 0.045 0.030 10.000 19.000
    Detection value (%) 0.011 0.042 1.760 0.030 0.001 8.060 17.230
