PIM-1B Capacitor Discharge Stud Welding Gun For Welding Cupped Head Pins

PIM-1B Capacitor Discharge Stud Welding Gun For Welding Cupped Head Pins

    • PIM-1B Capacitor Discharge Stud Welding Gun For Welding Cupped Head Pins
    • PIM-1B Capacitor Discharge Stud Welding Gun For Welding Cupped Head Pins
    • PIM-1B Capacitor Discharge Stud Welding Gun For Welding Cupped Head Pins
    • PIM-1B Capacitor Discharge Stud Welding Gun For Welding Cupped Head Pins
  • PIM-1B Capacitor Discharge Stud Welding Gun For Welding Cupped Head Pins

    Product Details:

    Place of Origin: Germany
    Brand Name: BTH BOLTE
    Certification: CE
    Model Number: PIM-1B

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: Negotiation
    Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
    Delivery Time: 5 working days after received your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Welding Range: Ø 2-4 Mm Welding Material: Steel, Stainless Steel
    Welding Method (acc. To DIN EN ISO 14555): Capacitor Discharge (contact Method) Welding Cable: 10 M, 25 Mm²
    Control Cable Plug: 7-pin Dimensions (WxHxL): 40x130x193 Mm
    Weight (without Cable): 0,9 Kg Item Number: B-90-10-2114

    PIM-1B Capacitor Discharge Stud Welding Gun For Welding Cupped Head Pins



    BTH Capacitor discharge stud welding guns PIM-1B



    compact stud welding gun

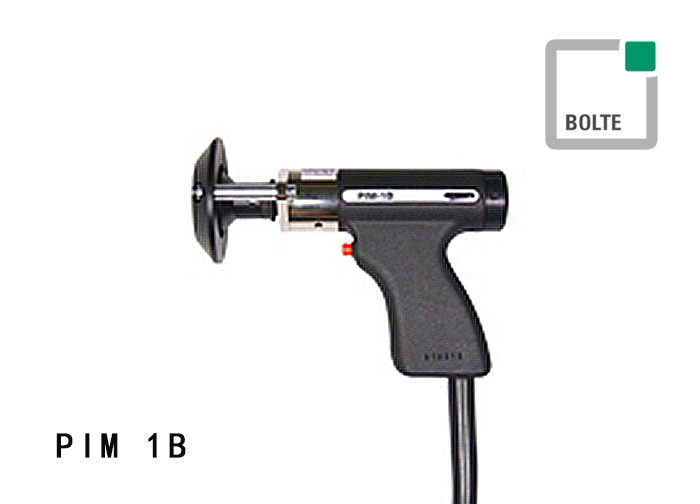

        The PIM-1B is a compact stud welding gun (welding method: capacitor discharge (contact)) for welding cupped head pins (insulation nails with clip) to fasten insulation mats. The cupped head pins are put onto the chuck and pushed through the insulation mat. At a certain surface pressure the welding is automatically triggered.The PIM-1B stands out through its simple handling, its robust construction and its high reliability. Its ergonomic design and low weight assure tireless working.





    Welding range Ø 2-4 mm
    Welding material steel, stainless steel
    Stud length any
    Welding method
    (acc. to DIN EN ISO 14555)
    capacitor discharge (contact method)
    Welding cable 10 m, 25 mm²
    Control cable plug 7-pin
    Dimensions (WxHxL) 40x130x193 mm
    Weight (without cable) 0,9 kg
    Item number B-90-10-2114





    • very well suited for welding on problematic surfaces (e.g. zinc, tinder)
    • spring pressure adjustable
    • indication of adjusted spring pressure in sight window
    • automatic triggering of welding procedure when correct surface pressure of cupped head pin to base material is reached
    • highest operational repeatability, high welding quality, high reliability
    • simple handling
    • high service life through high-grade mechanical components
    • robust housing made from impact resistant, full-insulating plastics
    • 50 mm² welding cable plugs in order to prevent burnt contacts
    • precision guidance protected from welding spatters
    • ergonomic design
    • compact construction
    • low weight



    All capacitor discharge stud welding guns at a glance





        PKM-1B PHM-1A PIM-1B
    Welding method
      Capacitor discharge (contact) x   x
      Capacitor discharge (gap)   x
    Application range
      Threaded studs, tapped studs, non-threaded studs, insulation nails, earth plugs, double earth plugs x x
      Cupped head pins     x
    Welding range (Ø mm)
      Capacitor discharge (contact) 2-10   2-4
      Capacitor discharge (gap)   2-10
    Welding material
      Steel x x x
      Stainless steel x x x
      Aluminium   x
      Brass   x
    Spring pressure adjustable x   x
    Spring pressure display x   x
    Lift adjustable   x
    Lift display   x
    Piston guide
      Slide-bearing x x x
      Linear ball track o o
    Welding cable
      -cross-section (mm2) 25 25 25
      -length (m) 6,5 3 10
    Control cable plug 7-pin 7-pin 7-pin
    Housing from impact resistant plastics x x x
    Protection of piston guidance from welding spatters x x x
    Dimensions
      Width (mm) 40 40 40
      Height (mm) 130 130 130
      Length (mm) 183 183 193
      Weight without cable (kg) 0,7 0,7 0,9
    x = Standard, o = Option
