PKA-500 Automatic Stud Welding Gun Used For Capacitor Discharge Stud Welding

PKA-500 Automatic Stud Welding Gun Used For Capacitor Discharge Stud Welding

    • PKA-500 Automatic Stud Welding Gun Used For Capacitor Discharge Stud Welding
    • PKA-500 Automatic Stud Welding Gun Used For Capacitor Discharge Stud Welding
    • PKA-500 Automatic Stud Welding Gun Used For Capacitor Discharge Stud Welding
    • PKA-500 Automatic Stud Welding Gun Used For Capacitor Discharge Stud Welding
  • PKA-500 Automatic Stud Welding Gun Used For Capacitor Discharge Stud Welding

    Product Details:

    Place of Origin: Germany
    Brand Name: BTH BOLTE
    Certification: CE
    Model Number: PKA-500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
    Delivery Time: 15 working days after received your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 units per month
    Contact Now
    Detailed Product Description
    Welding Range: Ø 2-8 Mm (other Ø On Inquiry) Welding Material: Steel, Stainless Steel
    Stud Length: 8-30 Mm (other Lengths On Inquiry) Welding Method (acc. To DIN EN ISO 14555): Capacitor Discharge
    Welding Cable: 5 M, 25 Mm² Control Cable Plug: 7-pin
    Dimensions (WxHxL): 60x172x335 Mm Item Number: B-90-10-4015

    PKA-500 Automatic Stud Welding Gun Used For Capacitor Discharge Stud Welding

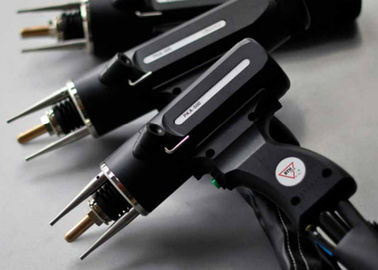

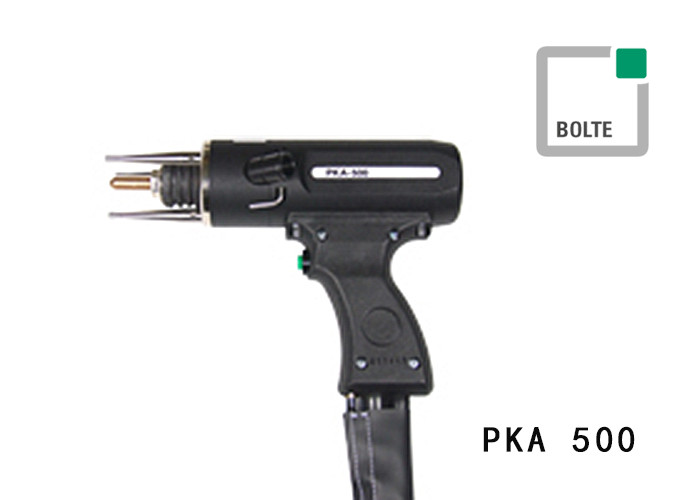

    BTH Automatic welding guns PKA-500



    For capacitor discharge stud welding



        The automatic stud welding gun PKA-500 is designed for capacitor discharge stud welding (contact method). It is suitable for automatic use (automatic stud feeding by stud feeder VBZ) and semi-automatic use (manual stud feeding).





    Welding range Ø 2-8 mm
    (other Ø on inquiry)
    Welding material steel, stainless steel
    Stud length 8-30 mm
    (other lengths on inquiry)
    Welding method
    (acc. to DIN EN ISO 14555)
    Capacitor Discharge
    Welding cable 5 m, 25 mm²
    Control cable plug 7-pin
    Dimensions (WxHxL) 60x172x335 mm
    Weight (without cable) 1,7 kg
    Item number B-90-10-4015





    • lift adjustable
    • suitable for automatic use (automatic stud feeding into the loading tube by stud feeder VBZ) and semi-automatic use (manual stud feeding into the loading tube) [automatic transport of stud from loading tube into chuck]
    • automatic length compensation system for different stud lengths and surface conditions
    • highest operational repeatability, high welding quality, high reliability
    • highest stud positioning accuracy through precise slide-bearing guide of gun piston
    • simple handling
    • quick and simple retooling
    • high service life through high-grade mechanical components
    • robust housing made from impact resistant, full-insulating plastics
    • 50 mm² welding cable plugs in order to prevent burnt contacts
    • welding and control cable as well as pneumatic connections protected by special hose
    • precision guidance protected from welding spatters
    • welding and control cable as well as pneumatic connections easily accessible for service
    • ergonomic design
    • compact construction
    • low weight



    All automatic welding guns at a glance



        PHA-500 PKA-500 PHA-500-6
    Welding method
      Capacitor discharge (contact)   x
      Capacitor discharge (gap) x
      Short cycle x   x
      Drawn arc x   x
    Welding range (Ø mm)
      Capacitor discharge (contact)   2-8
      Capacitor discharge (gap) 2-8
      Short cycle 2-8   2-8
      Drawn arc 2-8   2-8
    Welding material
      Steel x x x
      Stainless steel x x x
      Aluminium x
      Brass x
    Stud feeding
      automatic x x x
      semi-automatic (manual insertion) x x x
    Spring pressure adjustable   x
    Lift pressure adjustable x   x
    Automatic length compensation     x
    Piston guide
      Slide-bearing x x x
    Welding cable
      -cross-section (mm2) 25 25 25
      -length (m) 3 6,5 5
    Control cable plug 7-pin 7-pin 7-pin
    Housing from impact resistant plastics x x x
    Protection of piston guidance from welding spatters x x x
    Dimensions
      Width (mm) 60 60 60
      Height (mm) 172 172 172
      Length (mm) 290 235 335
      Weight without cable (kg) 1,6 1,1 1,7
    x = Standard, o = Option
