GD-22 Drawn Arc Stud Welding Gun Welding Shear Connectors With Large Diameters

GD-22 Drawn Arc Stud Welding Gun Welding Shear Connectors With Large Diameters

    • GD-22 Drawn Arc Stud Welding Gun    Welding Shear Connectors With Large Diameters
    • GD-22 Drawn Arc Stud Welding Gun    Welding Shear Connectors With Large Diameters
    • GD-22 Drawn Arc Stud Welding Gun    Welding Shear Connectors With Large Diameters
    • GD-22 Drawn Arc Stud Welding Gun    Welding Shear Connectors With Large Diameters
  • GD-22 Drawn Arc Stud Welding Gun    Welding Shear Connectors With Large Diameters

    Product Details:

    Place of Origin: Germany
    Brand Name: BTH BOLTE
    Certification: CE
    Model Number: GD-22

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
    Delivery Time: 5 working days after received your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Welding Range: Ø 3-22 Mm Welding Materia: Steel, Stainless Steel
    Stud Length: 10-525 Mm (with Accessories: Any) Welding Method (acc. To DIN EN ISO 14555): Drawn Arc (ceramic Ferrule And Inert Gas)
    Lift: 0-6 Mm, Adjustable (raster: 0,3 Mm) Welding Cable: 2 M, 95 Mm²
    Control Cable Plug: 12-pin Dimensions (WxHxL): 68x180x295 Mm
    Weight (without Cable): 2.45 Kg Item Number: B-80-35-1254
    High Light:

    pin welder gun

    ,

    arc welding gun

    GD-22 Drawn Arc Stud Welding Gun    Welding Shear Connectors With Large Diameters

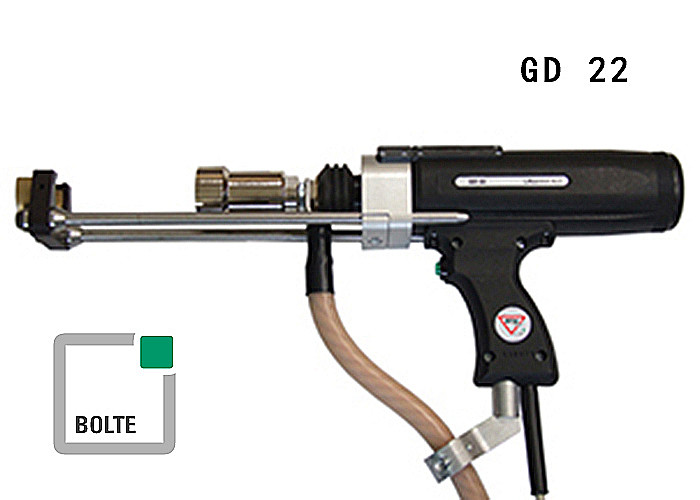

    BTH BOLTE Drawn Arc Stud Welding Guns GD-22



    Welding Shear Connectors With Large Diameters



        The new drawn arc stud welding gun GD 22 is designed for welding shear connectors with large diameters (19 and 22 mm).The ample-dimensioned adjustable lift (adjustment range: 0-6 mm) ensures in combination with the adjustable hydraulic piston damper optimum welding results in this diameter field. Of course, the new guns are suitable for welding through metal deck.
    The gun also features a piston with linear ball track, an automatic length compensation system for different stud lengths and surface conditions as well as a robust, impact resistant housing for the hard work on the construction site.
    The high-grade outside welding cable (cable cross section 95 mm²) accommodates the high welding currents that are necessary for large stud diameters.
    Optionally, the new guns can be equipped with integrated travel measuring system. Using this the lift adjustment couldn`t be easier. Moreover, it enables a quality monitoring by measuring and recording of stud travel (lift, piston runtime, immersion depth) for each weld.





    Welding range Ø 3-22 mm
    Welding material steel, stainless steel
    Stud length 10-525 mm
    Welding method
    (acc. to DIN EN ISO 14555)
    drawn arc (ceramic ferrule and inert gas)
    Lift 0-6 mm, adjustable
    (raster: 0,3 mm)
    Welding cable 2 m, 95 mm², outside
    Control cable plug 12-pin
    Dimensions (WxHxL) 68x180x295 mm
    Weight (without cable) 2,45 kg
    Item number B-80-35-1254



    • adjustable lift (raster 0,3 mm) with very large adjustment range (0-6 mm)
    • continuously adjustable hydraulic piston damper to regulate the immersion speed of the stud into the welding pool
    • very high-grade outside welding cable (cable cross section: 95 mm²), enables extremely fast welding sequences and guarantees a long life time of the gun
    • automatic length compensation system for different stud lengths and surface conditions
    • optional: integrated travel measuring system
      - facilitates lift adjustment
      - enables a quality monitoring by measuring stud travel (lift, piston runtime, immersion depth) for each weld
    • highest operational repeatability, high welding quality, high reliability
    • simple handling
    • quick and simple retooling
    • extremely quick welding sequences through newly developed solenoid
    • all stud types weldable (special chuck might be required)
    • piston with linear ball track
    • high service life through high-grade mechanical components
    • robust housing made from impact resistant, full-insulating plastics
    • 95 mm² welding cable plugs in order to prevent burnt contacts
    • precision guidance protected from welding spatters
    • electronically controlled automatic lift
    • ergonomic design



    All drawn arc stud welding guns at a glance







        PHM-10 PHM-12 PHM-160 PHM-161 GD 12

    GD 12sc

    GD 15 GD 16 GD 19 GD 22 GD 25
    Welding method
      Drawn arc (ceramic ferrule)   x x x x   x x x x x
      Short cycle x         x
      Drawn arc (inert gas)   o o o o   o o o o o
    Welding range (Ø mm)
      Drawn arc (ceramic ferrule)   3-12 3-16 3-16 3-12   3-15 3-16 3-19 3-22 3-25
      Short cycle 2-10         3-12
      Drawn arc (inert gas)   3-12 3-12 3-12 3-12   3-12 3-12 3-12 3-12 3-12
    Welding material
      Steel x x x x x x x x x x x
      Stainless steel x x x x x x x x x x x
    Lift (mm)
      constant 1,5 2 2 2
      adjustable         0-2,5 0-2,5 0-2,5 0-4 0-4 0-6 0-6
    Piston damper
    (adjustable hydraulic)
          x     x x x x x
    Integrated travel measuring system         o o o o o o o
    Automatic length compensation x x x x x x x x x x x
    Piston guide
      Slide-bearing x x
      Linear ball track o o x x x x x x x x x
    Welding cable
      cross-section (mm2) 35 35 50 50 35 35 35 50 95 95 120
      length (m) 5 5 5 5 5 5 5 5 2 2 2
    Welding cable
      inside x x x x x x x x
      outside                 x x x
    Control cable plug 7-pin 7-pin 7-pin 7-pin 12-pin 12-pin 12-pin 12-pin 12-pin 12-pin 12-pin
    Housing from impact resistant plastics x x x x x x x x x x x
    Protection of piston guidance from welding spatters x x x x x x x x x x x
    Dimensions
      Width (mm) 40 55 67 67 57 57 57 68 68 68 68
      Height (mm) 130 130 172 172 163 163 163 180 180 180 180
      Length (mm) 183 173 255 255 180 195 180 260 260 295 295
      Weight without cable (kg) 0,8 0,95 1,7 1,7 1,4 1,5 1,45 1,86 1,86 2,45 2,45
    x = Standard, o = Option
