Battery Powered Capacitor Discharge Stud Welding Machine With Up To 200V Charging Voltage

Battery Powered Capacitor Discharge Stud Welding Machine With Up To 200V Charging Voltage

    • Battery Powered Capacitor Discharge Stud Welding Machine With Up To 200V Charging Voltage
    • Battery Powered Capacitor Discharge Stud Welding Machine With Up To 200V Charging Voltage
    • Battery Powered Capacitor Discharge Stud Welding Machine With Up To 200V Charging Voltage
    • Battery Powered Capacitor Discharge Stud Welding Machine With Up To 200V Charging Voltage
  • Battery Powered Capacitor Discharge Stud Welding Machine With Up To 200V Charging Voltage

    Product Details:

    Place of Origin: Germany
    Brand Name: LBH BOLTE
    Certification: CE
    Model Number: Battery powered stud welding with up to 200 V charging voltage

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 units
    Price: Negotiation
    Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
    Delivery Time: 15 working days after received your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 30 units per month
    Contact Now
    Detailed Product Description
    Max. Welding Diameter: Ø 6 Mm Welding Material: Steel, Stainless Steel
    Capacitance: 47000 μF Charging Voltage: 60 - 200 V
    Welding Time: 1 - 3 MS Number Of Welds/battery Charge: M3/Ø3: 2800 M4/Ø4: 1500 M5/Ø5: 1100 M6/Ø6: 650
    Battery (capacity/voltage): 2 X 7,5 Ah/12 V Battery Life: 1000 Charging Cycles
    Battery Charging Time: 3 Hours External Power Adapter (for Charging/welding From Mains): 100 - 240 V, 50/60 Hz, 4000 MA
    Dimensions (B X L X H): 195 X 302 X 270 Mm Gewicht: 9,9 Kg
    Article Number: B-90-30-2052 Suitable Welding Guns: PKM-1B, PIM-1B
    High Light:

    capacitor discharge stud welder

    ,

    capacitor welding machine

    Battery Powered Capacitor Discharge Stud Welding Machine With Up To 200V Charging Voltage

    BTH BOLTE Battery powered stud welding with

    up to 200 V charging voltage

    Capacitor Discharge Stud Welding Machine





    Battery powered stud welding with up to 200 V charging voltage

          Our new battery powered stud welding units LBSaccu 50, LBSaccu 75 and LBSaccu 90 are designed for capacitor discharge stud weldings with up to 200 V charging voltage.

          The units offer 75% more power than competitor units and thus enable welding of stainless steel studs up to M8 reliable in process. Steel studs can even be welded up to M10 reliable in process. All three units can optionally be used with our gap stud wedling gun PHM-1A, so that also aluminium and brass studs can be welded reliable in process.

          The battery operation enables mobile use without electrical power supply. The integrated battery offers a very high capacity. With a life period of approx. 1000 charging cycles it is extremely long-lasting. Alternatively (e.g. when the battery is empty), the ISOFIXaccu can be operated at every power socket.

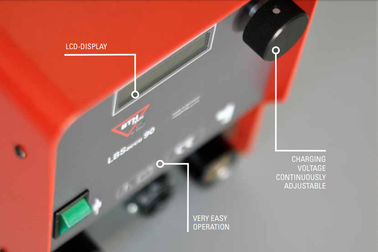

          The new units are very light and very compact (195 x 302 x 270 mm). They convince through easy operation and high welding quality. Through the electronically clocked inverter charging board short charging times and thus quick welding sequences are accomplished. The robust construction ensures high reliability and high power-on time. All functions are indicated by the high-grade LCD display. The charging voltage is continuously adjustable by the rotary knob on the front.

           The series LBSaccu was presented for the first time on the trade show Schweisstec (November 7-10 in Stuttgart).





    All battery powered capacitor discharge stud welding units at a glance





        LBSaccu 50 LBSaccu 50s LBSaccu 75 LBSaccu 75s LBSaccu 90 LBSaccu 90s
    Max. welding diameter (mm) 6 6 8 8 10 10
    Welding material steel, stainless steel steel, stainless steel, aluminium, brass steel, stainless steel steel, stainless steel, aluminium, brass steel, stainless steel steel, stainless steel, aluminium, brass
    Capacitance (μF) 47000 47000 66000 66000 88000 88000
    Charging voltage (V) 60-200 60-200 60-200 60-200 60-200 60-200
    Welding time (mS) 1-3 1-3 1-3 1-3 1-3 1-3
    Number of welds/battery charge M3/Ø3: 2800
    M4/Ø4: 1500
    M5/Ø5: 1100
    M6/Ø6: 650
    M3/Ø3: 2800
    M4/Ø4: 1500
    M5/Ø5: 1100
    M6/Ø6: 650
    M3/Ø3: 2800
    M4/Ø4: 1500
    M5/Ø5: 1100
    M6/Ø6: 650
    M8/Ø8: 400
    M3/Ø3: 2800
    M4/Ø4: 1500
    M5/Ø5: 1100
    M6/Ø6: 650
    M8/Ø8: 400
    M3/Ø3: 2800
    M4/Ø4: 1500
    M5/Ø5: 1100
    M6/Ø6: 650
    M8/Ø8: 400
    M10: 250
    M3/Ø3: 2800
    M4/Ø4: 1500
    M5/Ø5: 1100
    M6/Ø6: 650
    M8/Ø8: 400
    M10: 250
    Battery (capacity/voltage) 2 x 7,5 Ah/12 V 2 x 7,5 Ah/12 V 2 x 7,5 Ah/12 V 2 x 7,5 Ah/12 V 2 x 7,5 Ah/12 V 2 x 7,5 Ah/12 V
    Battery life 1000 charging cycles 1000 charging cycles 1000 chargin cycles 1000 charging cycles 1000 charging cycles 1000 charging cycles
    Battery charging time 3 hours 3 hours 3 hours 3 hours 3 hours 3 hours
    Error diagnosis systems
      Excess temperature x x x x x x
      Damage on welding/control cable x x x x x x
      Damage on solenoid x x x x x x
    External power adapter (for charging/welding from mains) 100-240 V, 50/60 Hz, 4000 mA 100-240 V, 50/60 Hz, 4000 mA 100-240 V, 50/60 Hz, 4000 mA 100-240 V, 50/60 Hz, 4000 mA 100-240 V, 50/60 Hz, 4000 mA 100-240 V, 50/60 Hz, 4000 mA
    Thermic controlled ventilator x x x x x x
    Robust, powder-coated metal housing x x x x x x
    Dimensions
      Width (mm) 195 195 275 275 195 195
      Height (mm) 302 302 302 302 302 302
      Length (mm) 270 270 270 270 270 270
      Weight (kg) 9,9 10 10,4 10,5 11,3 11,4
    Control cable socket for welding guns 7-pin 7-pin 7-pin 7-pin 7-pin 7-pin
    Suitable welding guns
      PKM-1B x o x o x o
      PHM-1A   x   x   x
      PIM-1B o o o o o o
    x = Standard, o = Option
