100mm Integrated Short Cycle Stud Bolt Welding Gun

100mm Integrated Short Cycle Stud Bolt Welding Gun

    • 100mm Integrated Short Cycle Stud Bolt Welding Gun
    • 100mm Integrated Short Cycle Stud Bolt Welding Gun
    • 100mm Integrated Short Cycle Stud Bolt Welding Gun
  • 100mm Integrated Short Cycle Stud Bolt Welding Gun

    Product Details:

    Place of Origin: Germany
    Brand Name: BTH BOLTE
    Certification: CE
    Model Number: GD-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
    Delivery Time: 5 working days after received your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Welding Range: Ø 3-12 Mm Welding Materia: Steel, Stainless Steel,aluminium
    Stud Length: 6-100 Mm (with Accessories: Any) Welding Method (acc. To DIN EN ISO 14555): Short Cycle
    Lift: 0-2,5 Mm, Adjustable (raster: 0,1 Mm) Welding Cable: 5 M, 35 Mm²
    Control Cable Plug: 12-pin Dimensions (WxHxL): 57x163x195 Mm
    Weight (without Cable): 1.5 Kg Item Number: B-80-35-1257
    High Light:

    SS Stud Bolt Welding Gun

    ,

    100mm Stud Bolt Welding Gun

    ,

    Integrated Stud Bolt Welding Gun

    100mm Integrated Short Cycle Stud Bolt Welding Gun



    BTH BOLTE BTH Short Cycle Stud Welding Gun GD-12sc Welding Max Size M12





        The stud welding gun GD 12sc is designed for short cycle stud welding. The adjustable lift (adjustment range: 0-2,5 mm) enables the perfect set up for each welding task. In connection with the piston with linear ball track, the ample-dimensioned welding cable (cable cross section: 35 mm²) and the automatic length compensation the new GD 12sc guarantees always perfect welding results.
    Highlight of the new gun is the integrated travel measuring system (optional). Using this the lift adjustment couldn`t be easier. Moreover, it enables a quality monitoring by measuring and recording of stud travel (lift, piston runtime, immersion depth) for each weld.
    The GD 12sc convinces by easy handling, high reliability and an ergonomic design. The robust construction ensures a smooth running even under stringent conditions.



    Welding range Ø 3-12 mm
    Welding material steel, stainless steel, aluminium
    Stud length 6-100 mm
    (with accessories: any)
    Welding method
    (acc. to DIN EN ISO 14555)
    short cycle
    Lift  0-2,5 mm, adjustable
    (raster: 0,1 mm)
    Welding cable 5 m, 35 mm²
    Control cable plug 12-pin
    Dimensions (WxHxL) 57x163x195 mm
    Weight (without cable) 1,5 kg
    Item number B-80-35-1257





    • adjustable lift (raster 0,1 mm) with large adjustment range (0-2,5 mm)
    • welding cable with cable cross-section 35 mm²
    • automatic length compensation system for different stud lengths and surface conditions
    • optional: integrated travel measuring system
    - facilitates lift adjustment
    - enables a quality monitoring by measuring stud travel (lift, piston runtime, immersion depth) for each weld
    • highest operational repeatability, high welding quality, high reliability
    • simple handling
    • quick and simple retooling
    • extremely quick welding sequences by reinforced solenoid

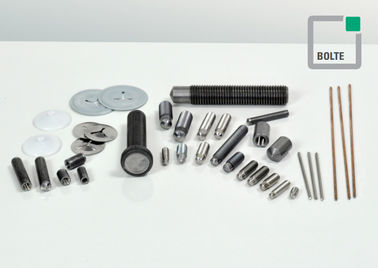

    • all stud types weldable (special chuck might be required)
    • piston with linear ball track
    • high service life through high-grade mechanical components
    • robust housing made from impact resistant, full-insulating plastics
    • 50 mm² welding cable plugs in order to prevent burnt contacts
    • precision guidance protected from welding spatters
    • electronically controlled automatic lift
    • ergonomic design



    All drawn arc stud welding guns at a glance





        PHM-10 PHM-12 PHM-160 PHM-161 GD 12

    GD 12sc

    GD 15 GD 16 GD 19 GD 22 GD 25
    Welding method
      Drawn arc (ceramic ferrule)   x x x x   x x x x x
      Short cycle x         x
      Drawn arc (inert gas)   o o o o   o o o o o
    Welding range (Ø mm)
      Drawn arc (ceramic ferrule)   3-12 3-16 3-16 3-12   3-15 3-16 3-19 3-22 3-25
      Short cycle 2-10         3-12
      Drawn arc (inert gas)   3-12 3-12 3-12 3-12   3-12 3-12 3-12 3-12 3-12
    Welding material
      Steel x x x x x x x x x x x
      Stainless steel x x x x x x x x x x x
    Lift (mm)
      constant 1,5 2 2 2
      adjustable         0-2,5 0-2,5 0-2,5 0-4 0-4 0-6 0-6
    Piston damper
    (adjustable hydraulic)
          x     x x x x x
    Integrated travel measuring system         o o o o o o o
    Automatic length compensation x x x x x x x x x x x
    Piston guide
      Slide-bearing x x
      Linear ball track o o x x x x x x x x x
    Welding cable
      cross-section (mm2) 35 35 50 50 35 35 35 50 95 95 120
      length (m) 5 5 5 5 5 5 5 5 2 2 2
    Welding cable
      inside x x x x x x x x
      outside                 x x x
    Control cable plug 7-pin 7-pin 7-pin 7-pin 12-pin 12-pin 12-pin 12-pin 12-pin 12-pin 12-pin
    Housing from impact resistant plastics x x x x x x x x x x x
    Protection of piston guidance from welding spatters x x x x x x x x x x x
    Dimensions
      Width (mm) 40 55 67 67 57 57 57 68 68 68 68
      Height (mm) 130 130 172 172 163 163 163 180 180 180 180
      Length (mm) 183 173 255 255 180 195 180 260 260 295 295
      Weight without cable (kg) 0,8 0,95 1,7 1,7 1,4 1,5 1,45 1,86 1,86 2,45 2,45
    x = Standard, o = Option
